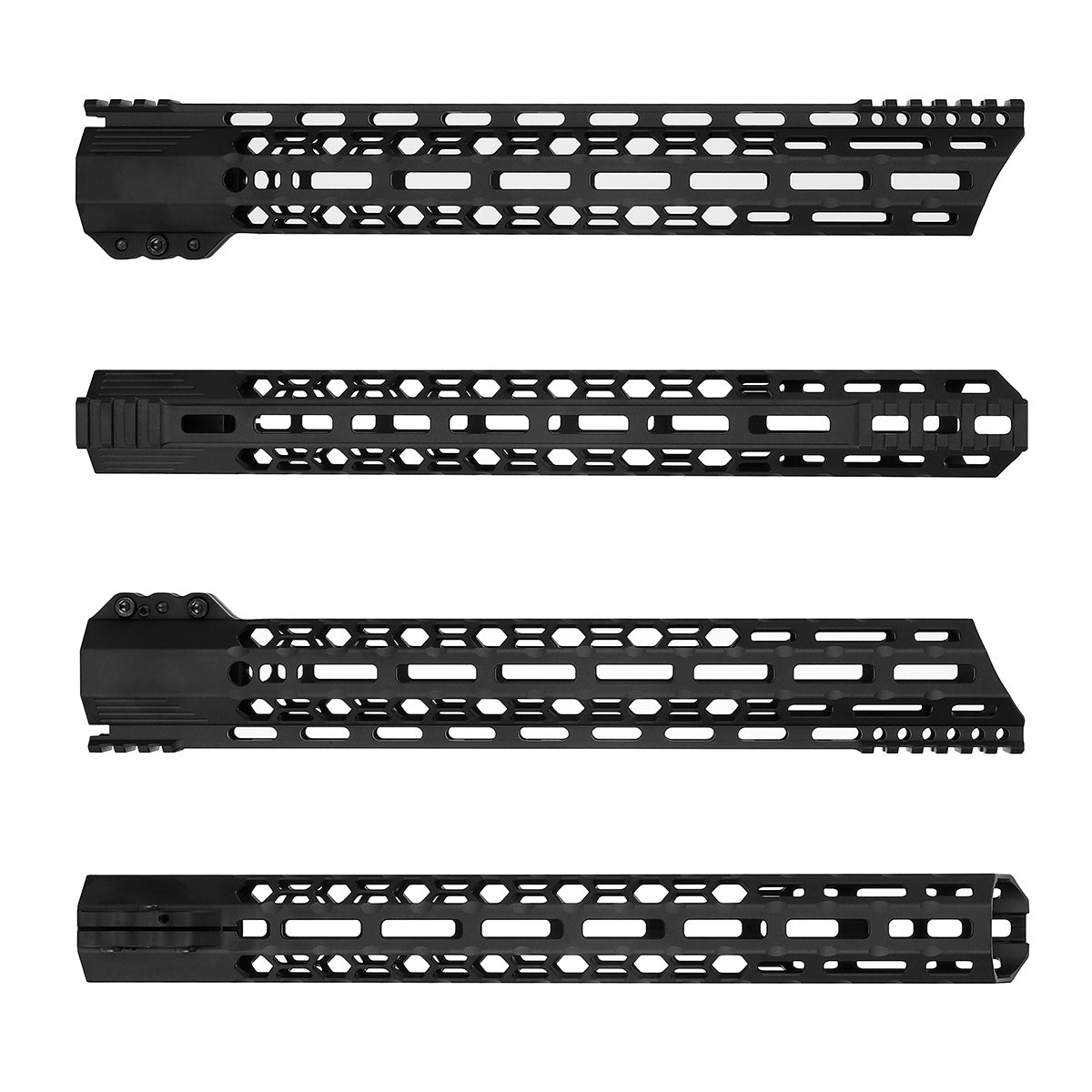

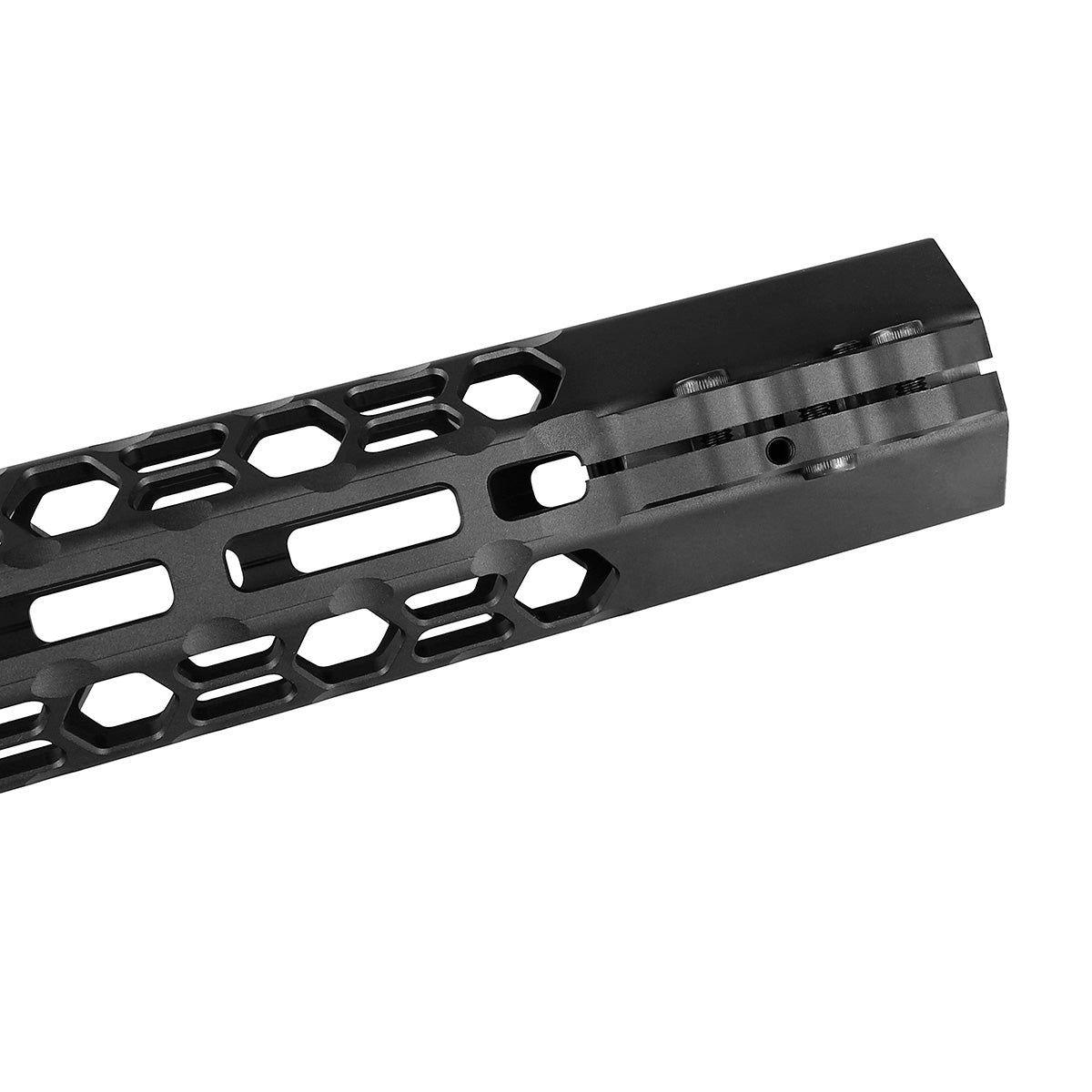

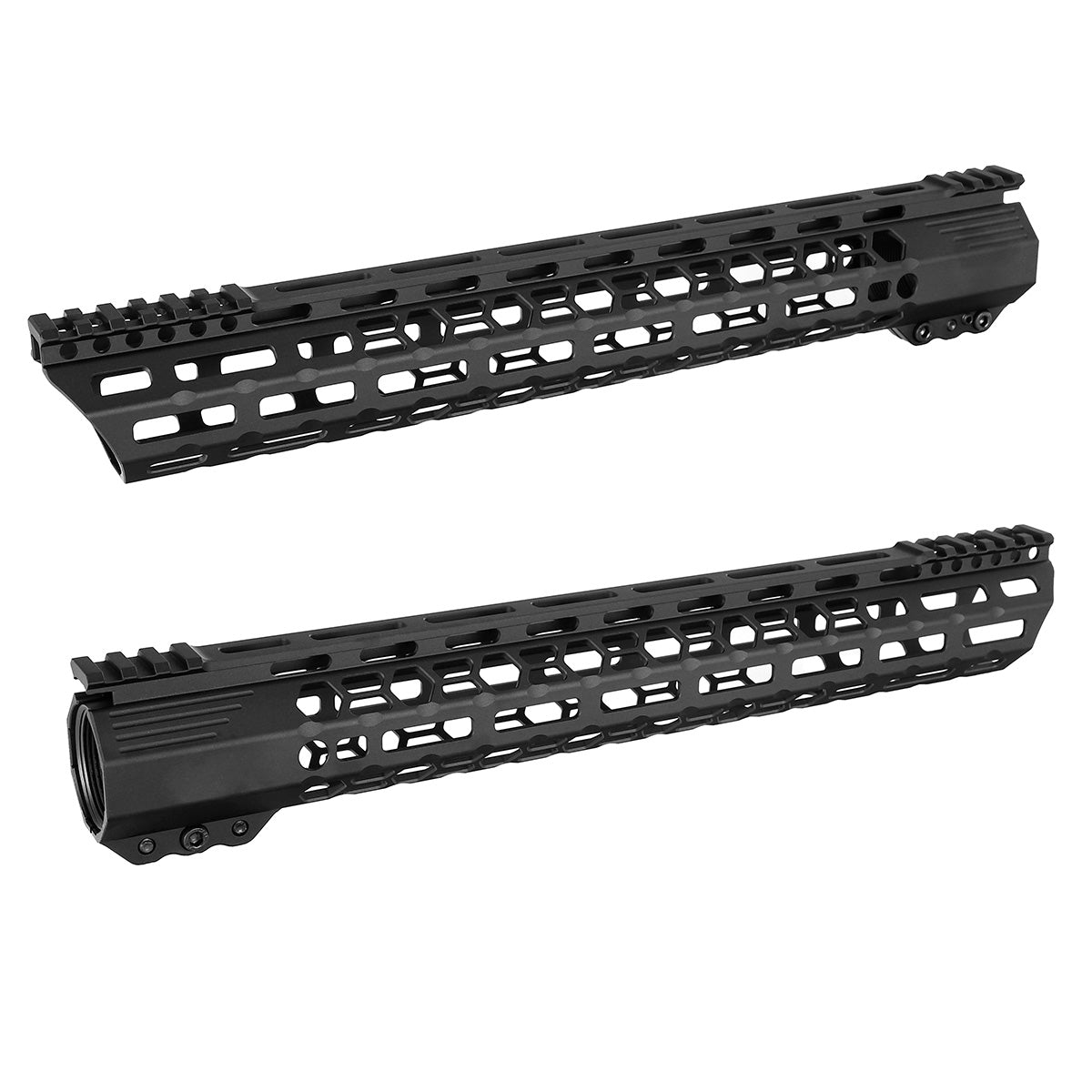

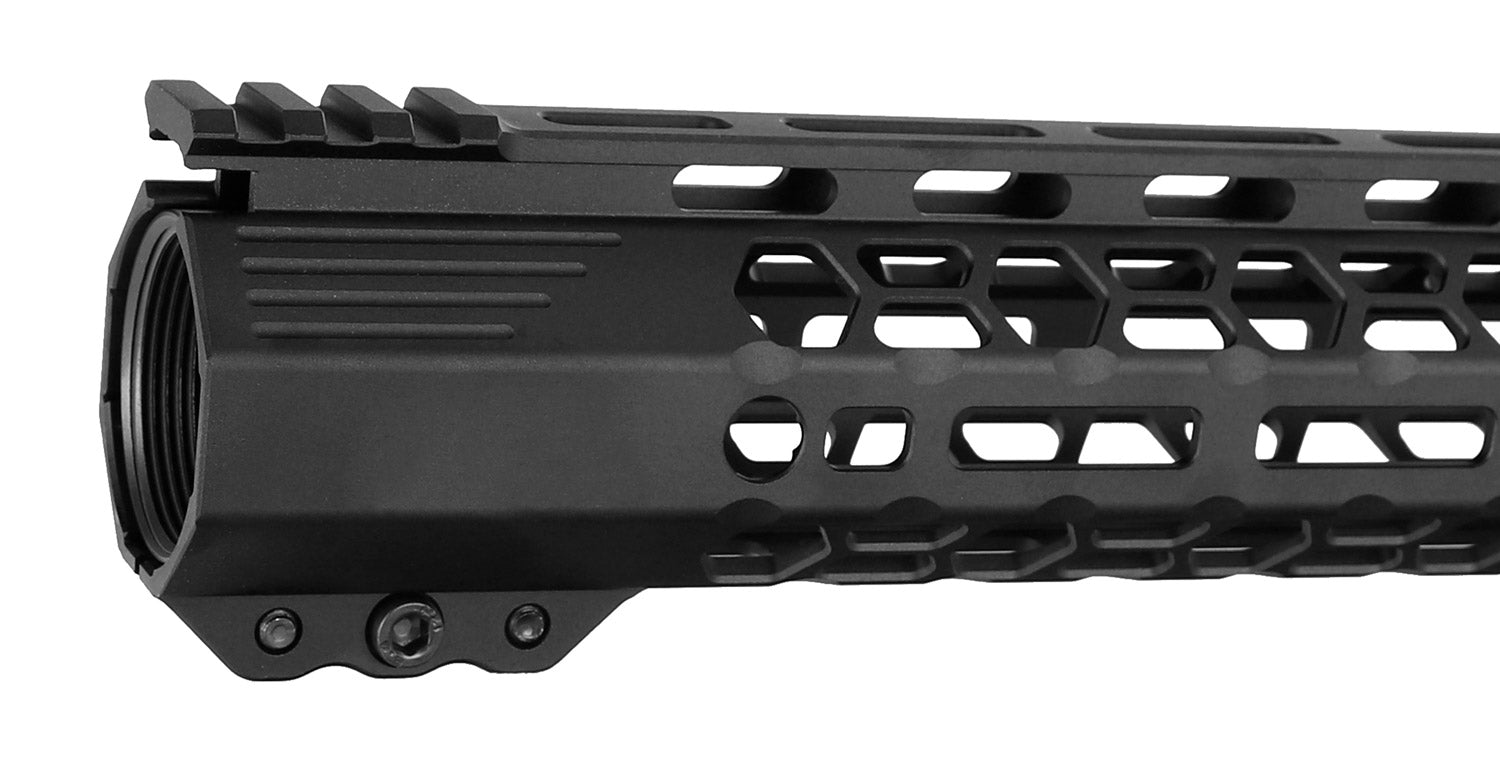

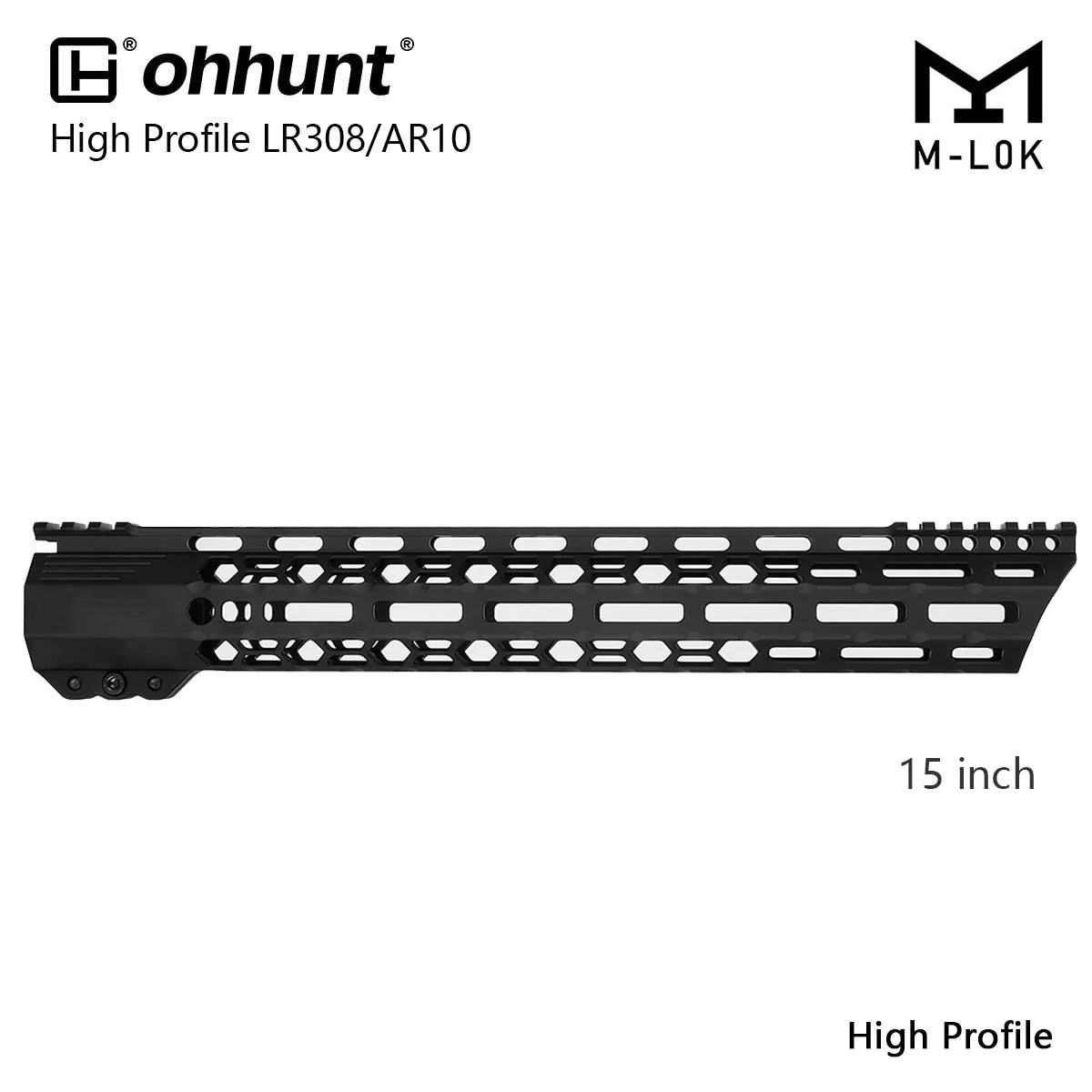

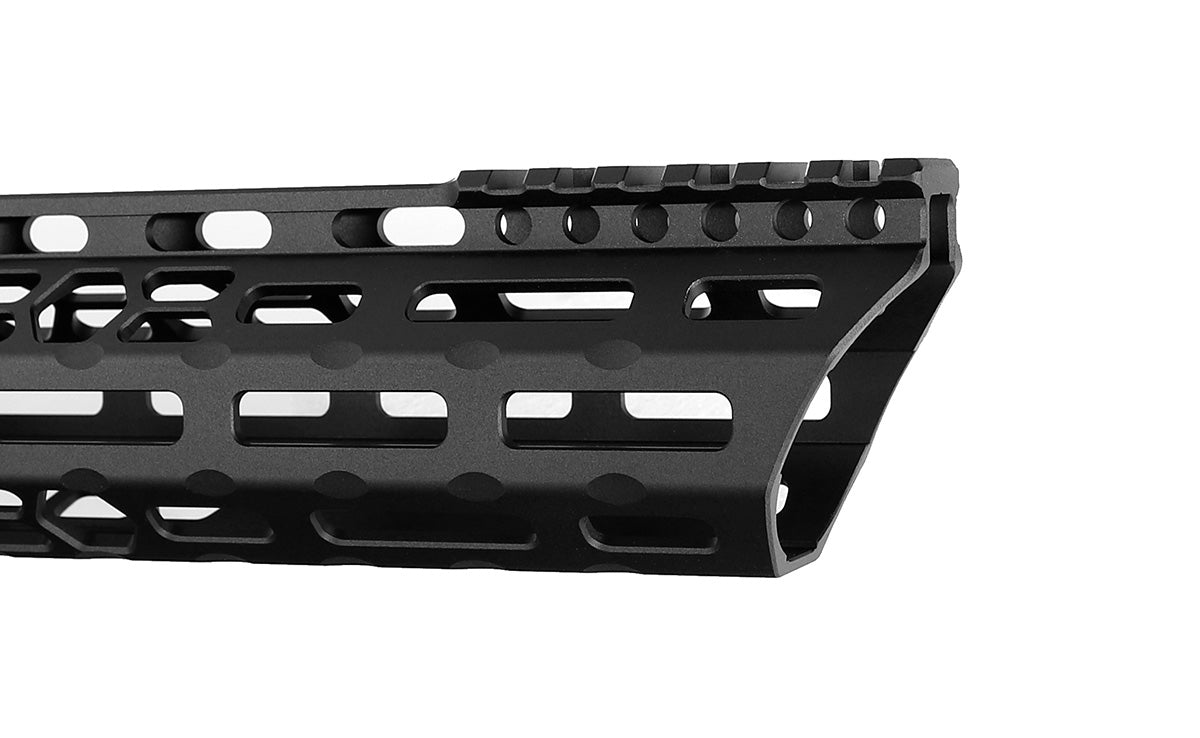

ohhunt® High Profile AR10 / LR-308 Handguard 15" 17" with Angle Cut Front

ohhunt® High Profile AR10 / LR-308 Handguard 15" 17" with Angle Cut Front

Regular price $80.90 USD
Regular price $41.90 USD Sale price $80.90 USD
Sale Sold out
Shipping calculated at checkout.
Length
Ships From

Estimated Delivery Time

Handling Times: 1~2 Days
United States: 10~15 days
Europe: 15~30 days
Asia: 10~15 days
Other Countries: 10~45 days
Ships From: China

Features:

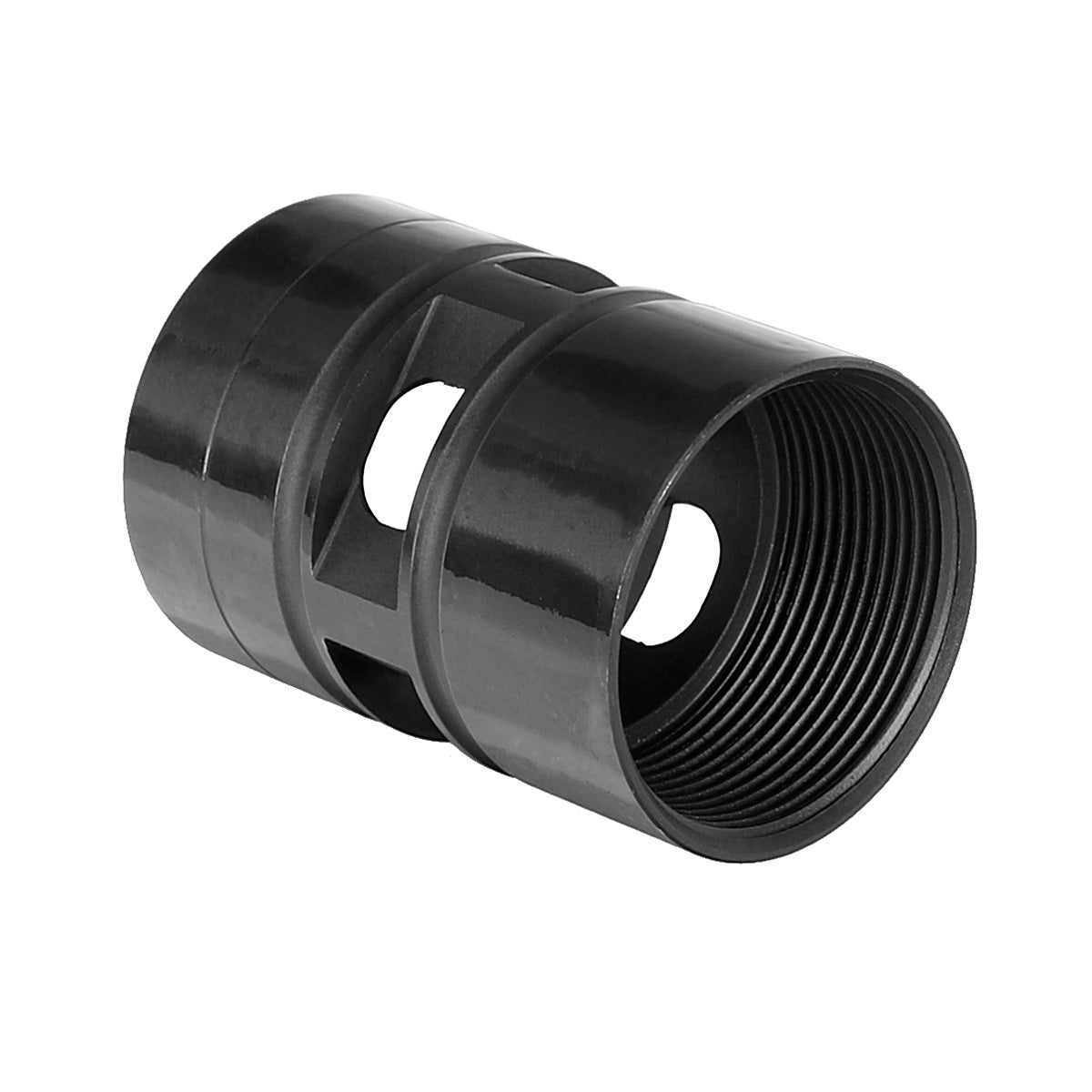

  • For High Profile LR-308 & ArmaLite AR10: one side of the Barrel Nut with 16 tpi thread (fit LR308) and the other side with 18 tpi thread (ArmaLite AR10).
  • Lightweight: Cut for weight reduction, this system still retains the utmost in robust construction and provides a Flat top Picatinny rail mounting system and plenty of attachment points for all your M-Lok accessories
  • CNC Machining: Fully Dehorned and Deburred, all the Cutout Edges are Beveled to Ensure the Safety For Handling.
  • Ergonomic Grooves: The engraved grooves on the handguard provide a more ergonomic hold and a unique look, and maintains the strength and stability that the shooters require by prevent from sliding.
  • Free Float Design: Free Float Handguard eliminates loads from barrel, reducing the deflection for more accurate shooting.
  • Solid 7075-T6 Aluminum: The Barrel Nut is made from 7075-T6 Aerospace aluminum, provides greater tensile strength, shear strength, and Brinell hardness.

Specification:

  • Guide Type: 308 Handguard
  • Platform: LR-308
  • Comulatible With: DPMS High Profile Upper Receivers
  • Rail Type: Picatinny Rail
  • Gas System Length: Extended Rifle
  • Finish: Hardcoat Anodized
  • Handguard Material: 6061-T6 Aluminum
  • Barrel Nut Material: 7075-T6 Aluminum

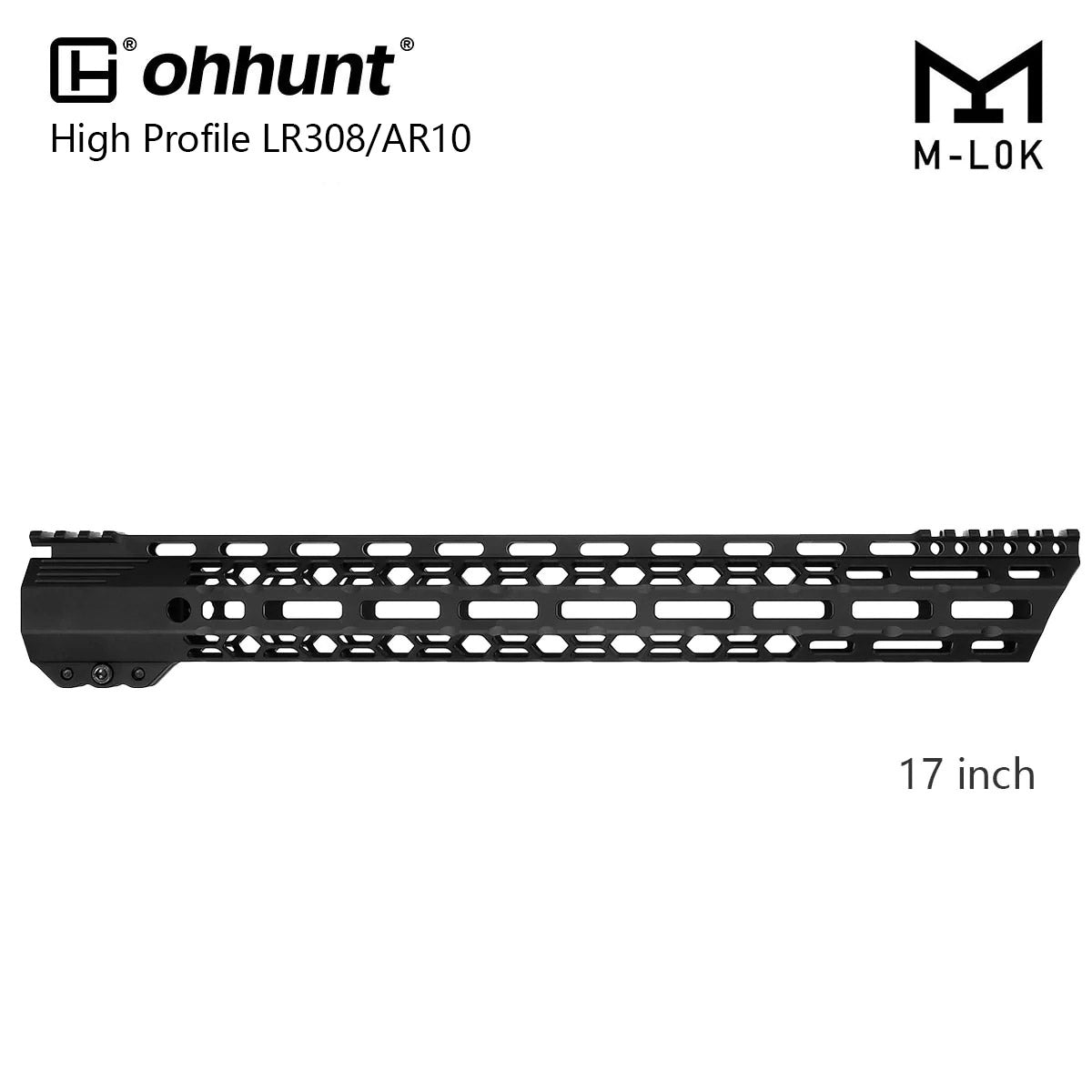

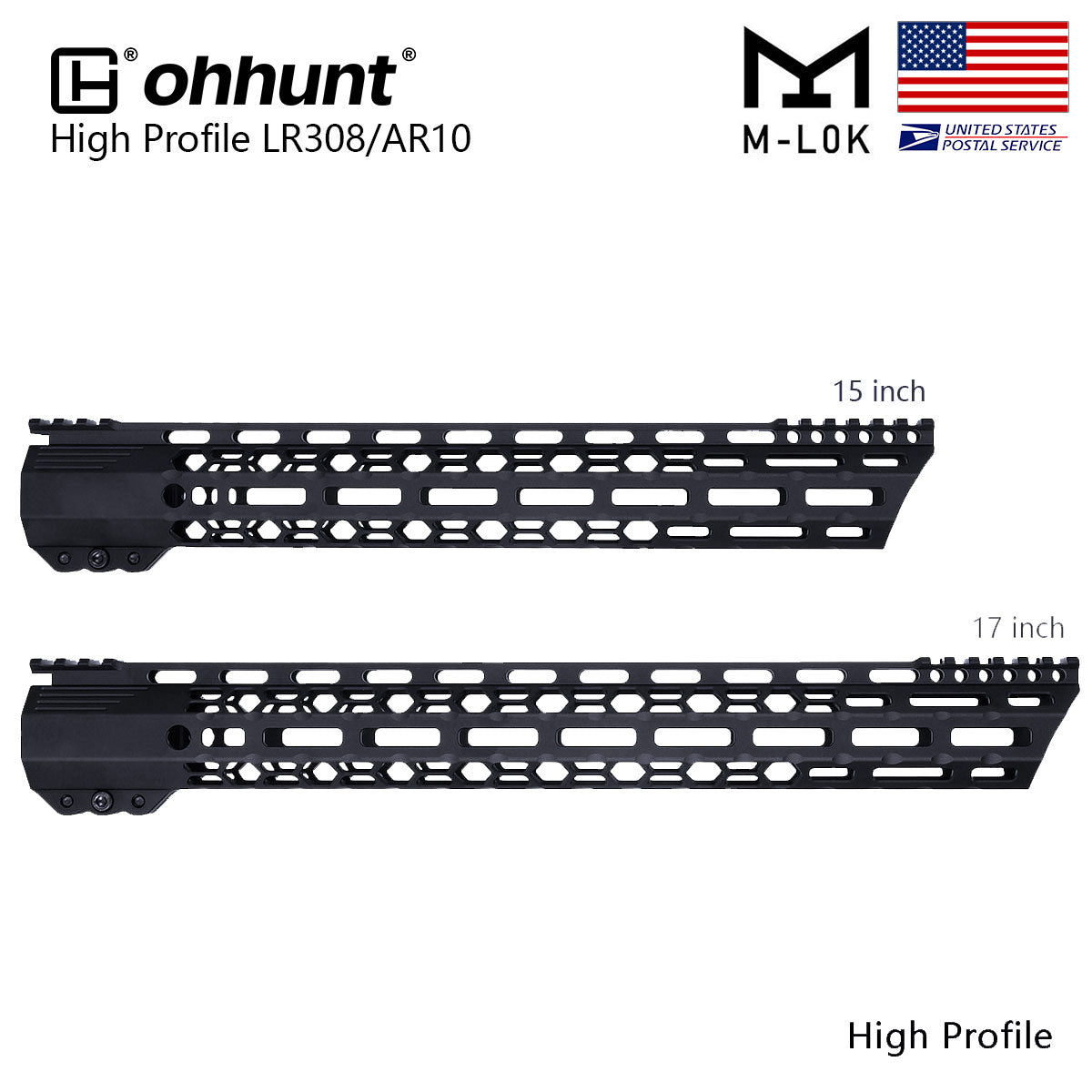

  • Handguard Length: 15 inch, 17 inch
  • Handguard Weight: 422g(15"), 495g(17")
  • Outside Height (Including top rail): 2.18"
  • Outside Width: 1.73"

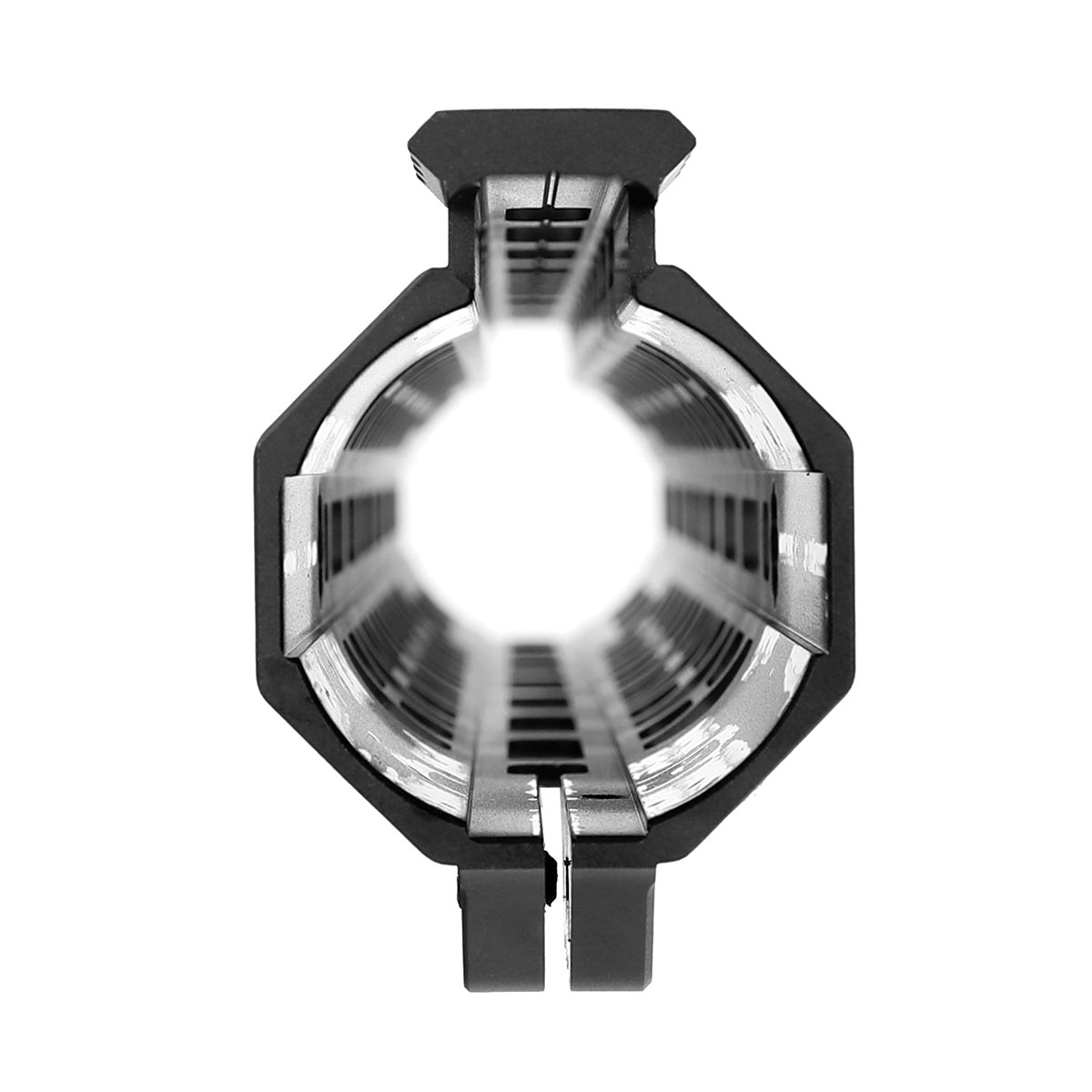

  • Inside Diameter: 1.6"
  • Barrel Nut Outer Diameter: 1.6"
  • Barrel Nut Inner Diameter: 1.37"
  • Barrel Nut Weight: 3.7oz / 105g
  • No. of Rails: 1
  • Manufacturer: Ohhunt
  • OEM & ODM: Yes
View full details

What is the Difference Between High Profile and Low Profile LR-308/AR-10 handguard?

The receiver height on the various LR-308/AR-10 rifles vary since there is no mil-spec/standardization with this platform compared to the AR-15. Determining the receiver height is needed when finding the right handguard that will fit if switching out an existing handguard or building an LR-308/AR-10.

The common two are aptly named high and low profile. Simply measure the height of the tab that juts out above the charging handle. Low-profile receivers measure 1/8" and high-profile receivers measure 3/16".

Customer Reviews

Based on 6 reviews
67%
(4)
17%
(1)
17%
(1)
0%
(0)
0%
(0)
W
William P.
Handguard

The cost is great, and I wondered if the quality would match. Upon receiving the package, it looked great. After install, I couldn't be more pleased. Thanks!

D
DM
Pretty Good

It took about 2-3 weeks to get it and slow on email replies, but the product arrived and fits amazing. Looks even better in person.

B
Blake D.
Not a Universal barrel nut

I can’t get the barrel nut off because I do not have a tool to get it off. I broke my wrench getting it on.

R
Rhyamizak
High Profile AR10 LR308 M-lok Free-Float Handguard with Angle Cut Front - 15 inch

Good product, lightweight, durable, easy to install, matches for aero M5

B
Brent K.
High Profile AR10 LR 308 M-lok Free-Float Handguard

It matches perfect with my Aero M5 upper. Nice durable hand guard! Easy to install, only issue no instructions with hand guard. Individual MAY put the wrong end of the barrel nut causing severe damage to their upper. Good thing I’ve built other AR’s before this one. Shipping was super fast! I could believe it came that fast from so far away. No issues with packaging, came in mint condition.

K
Kofi B.
17" slanted High Profile LR.308 mlok handguard

Everything was great until shipping , but it got here safe and I'm satisfied with my purchase, thank you
